SPRING TINE CULTIVATOR
Project Description

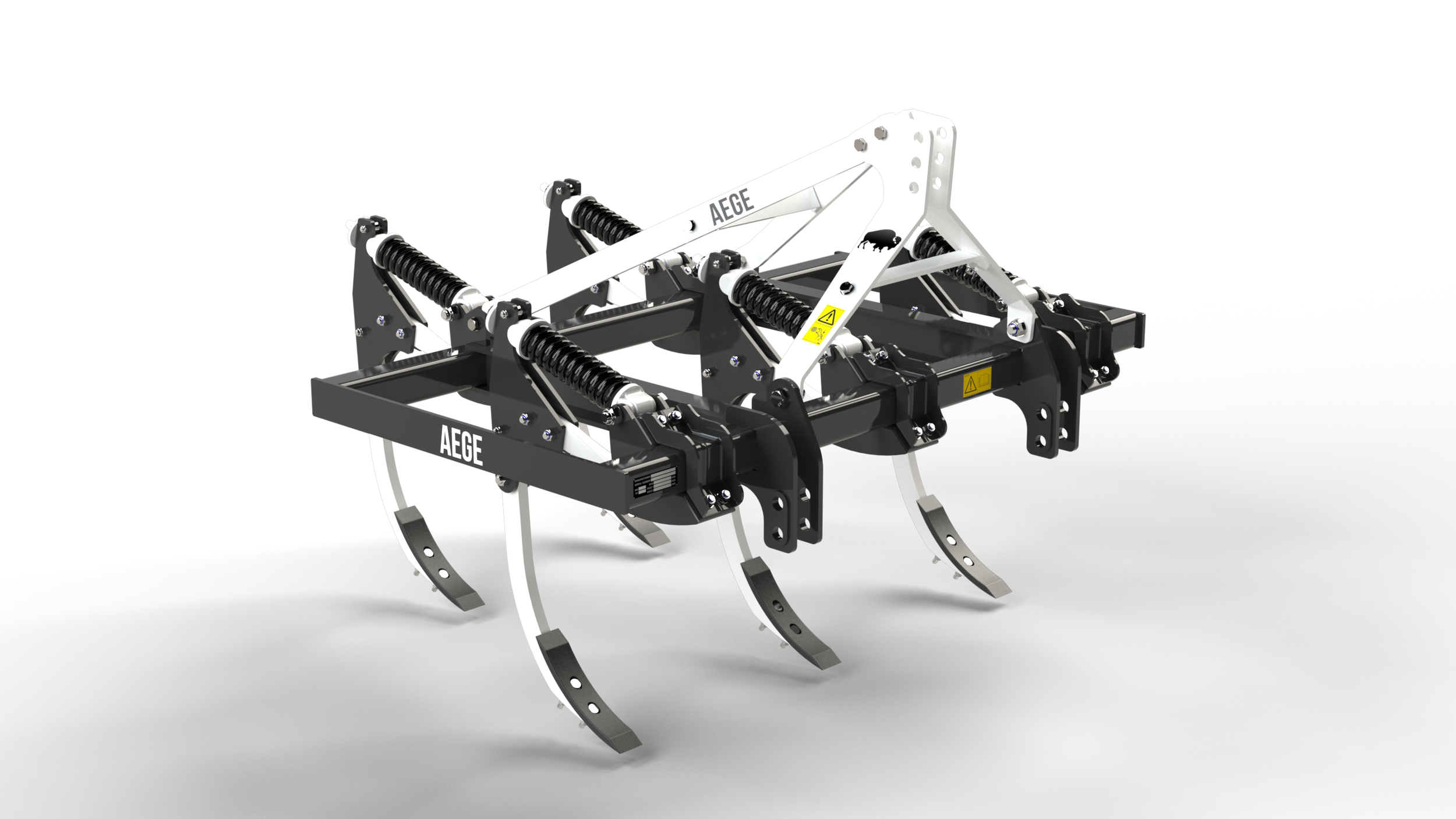

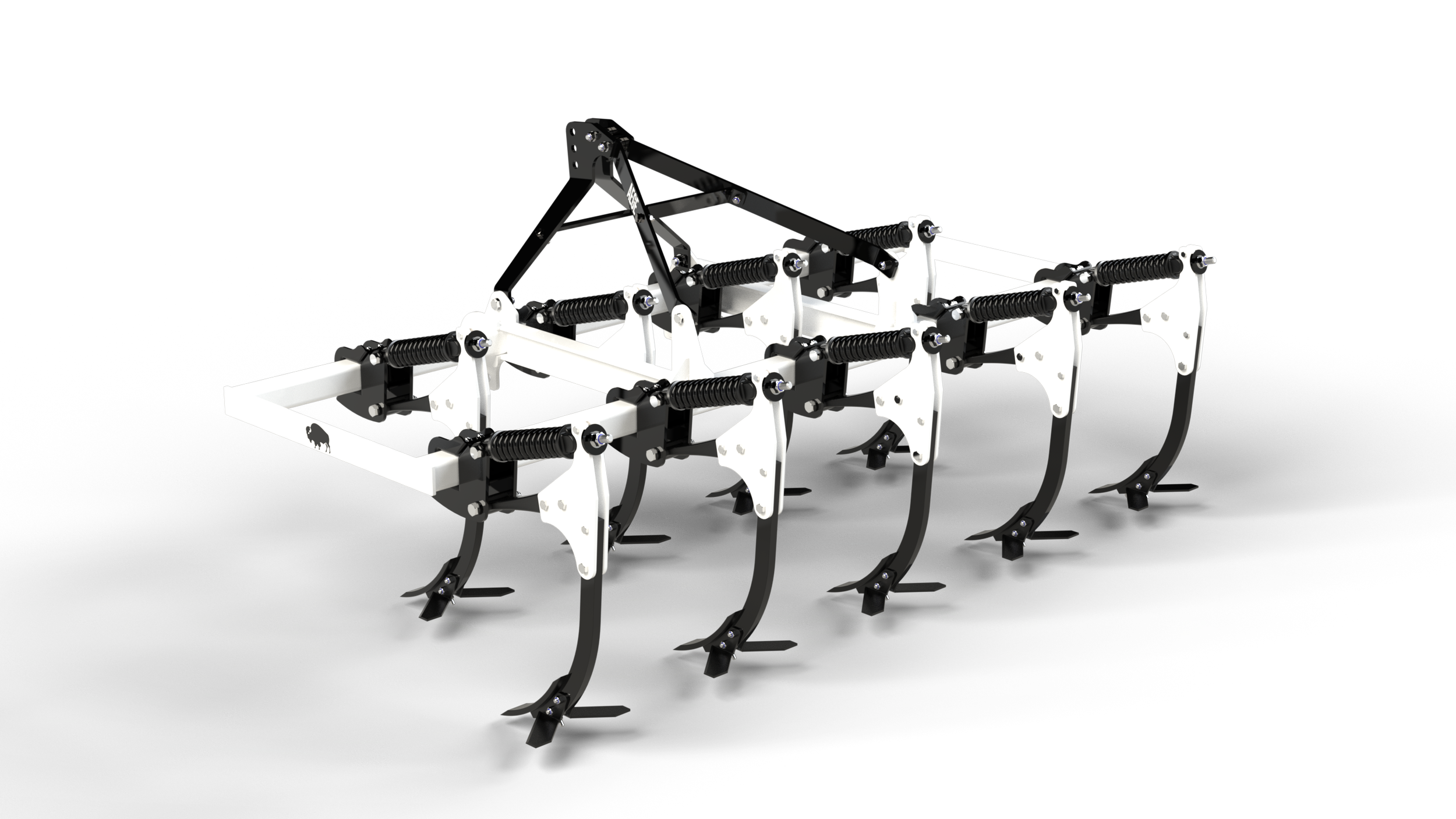

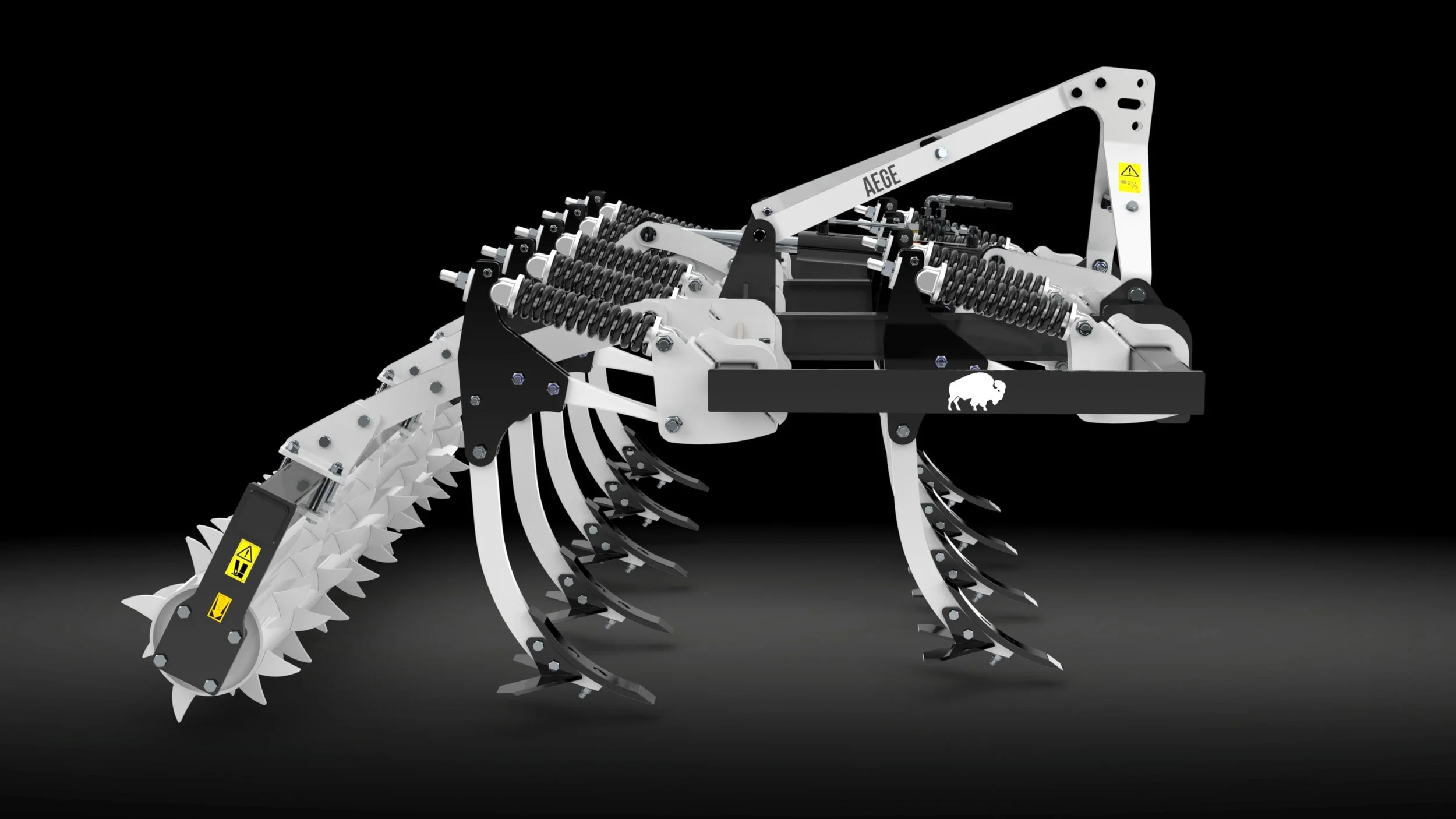

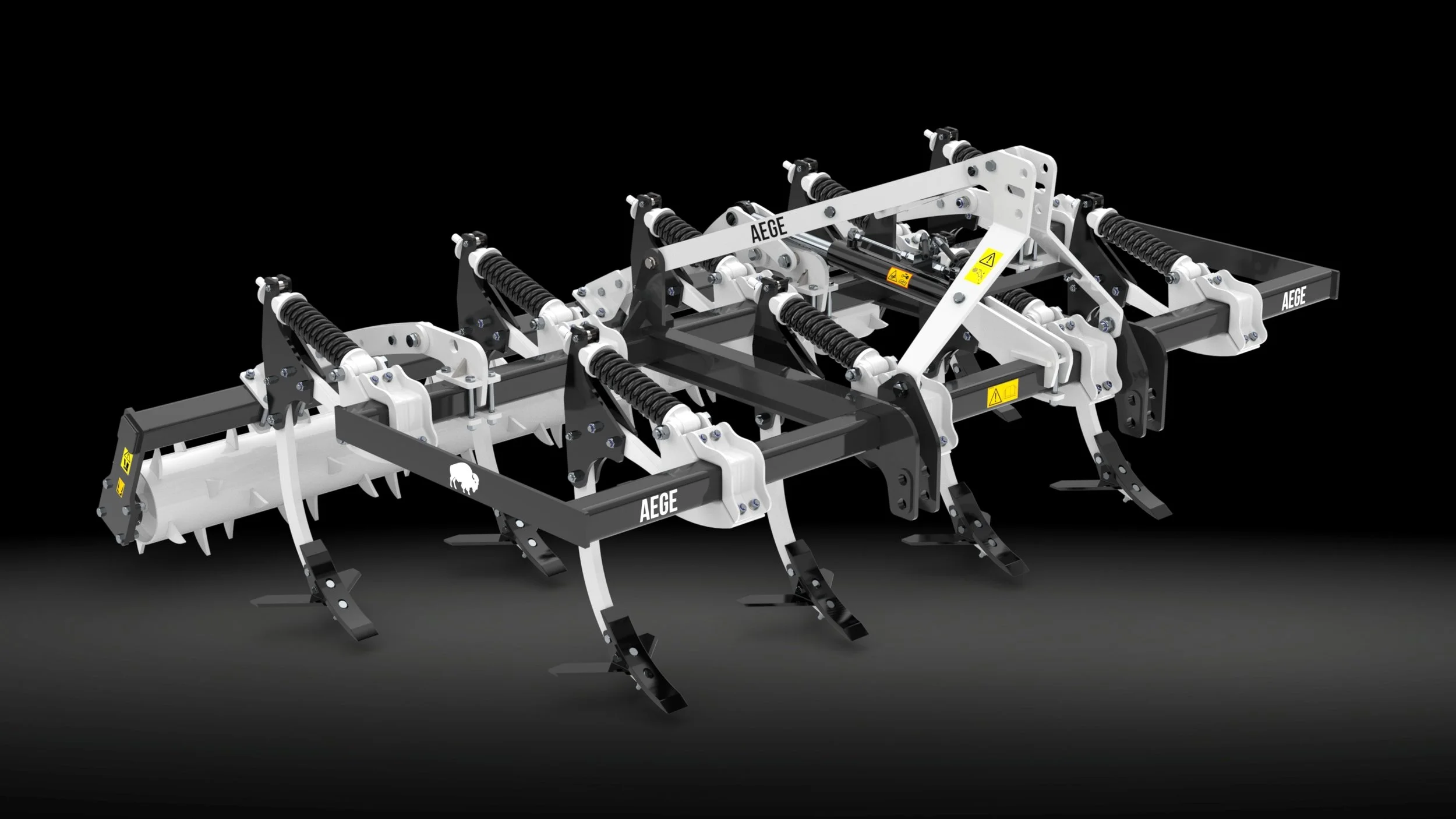

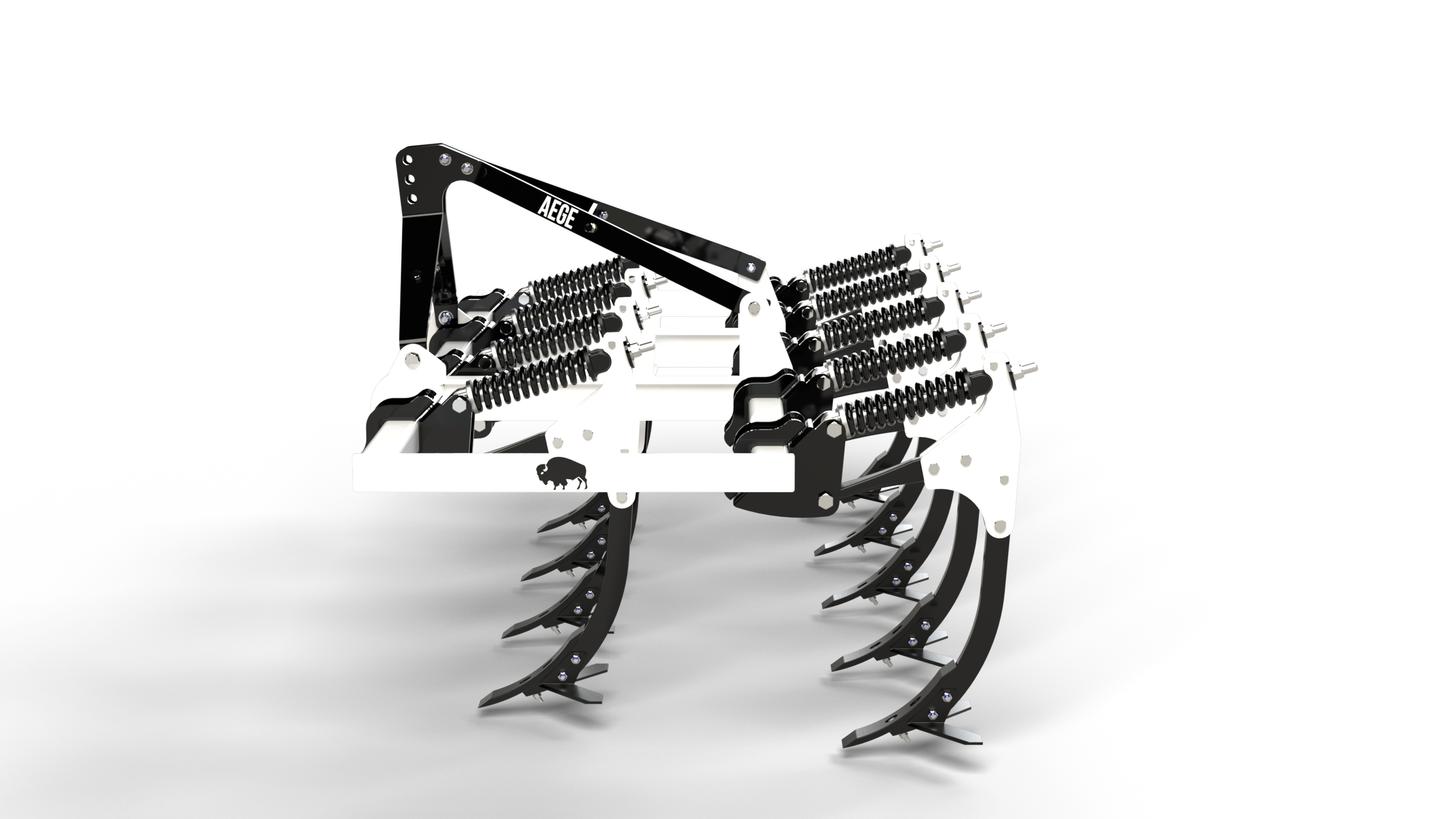

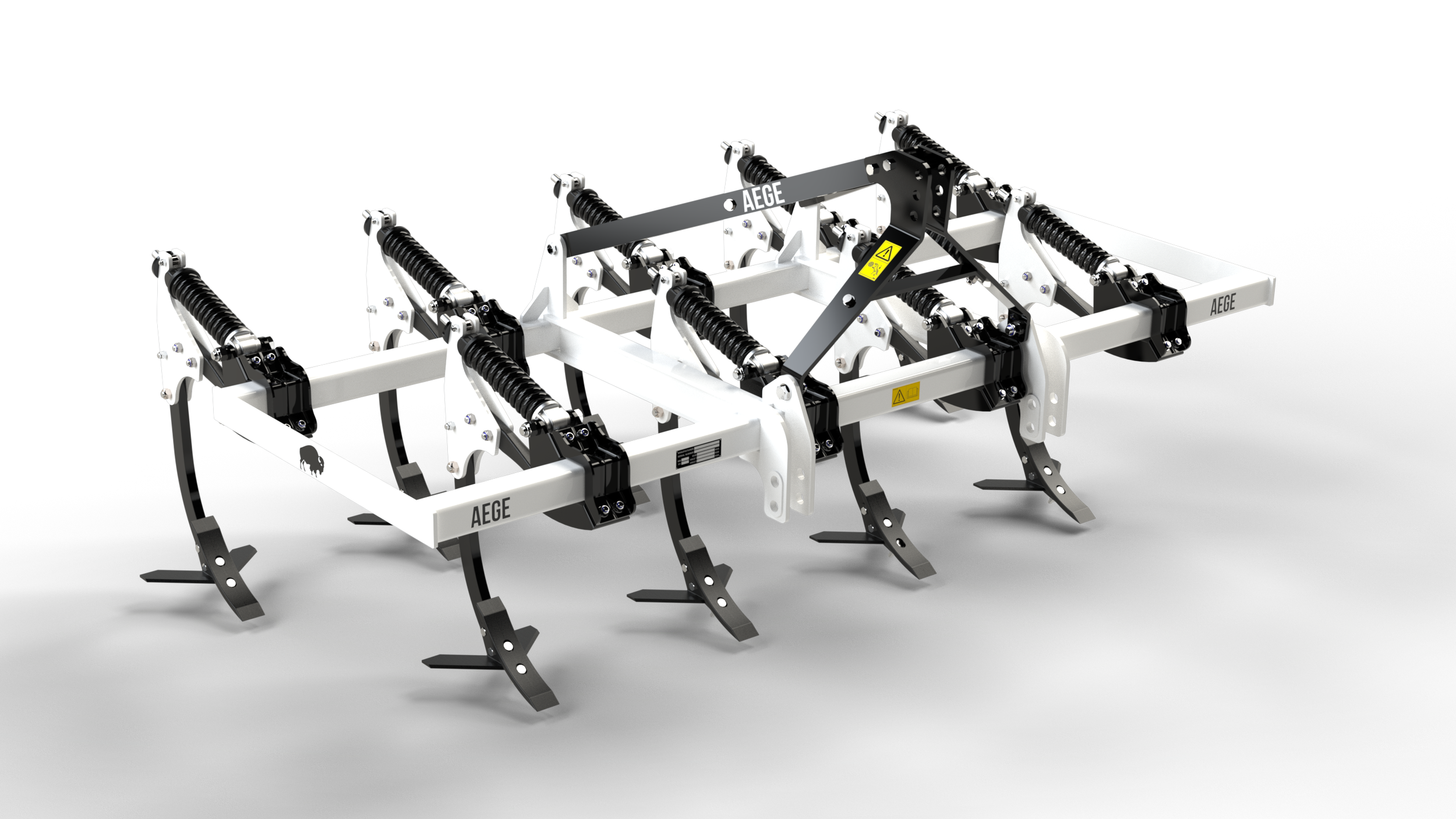

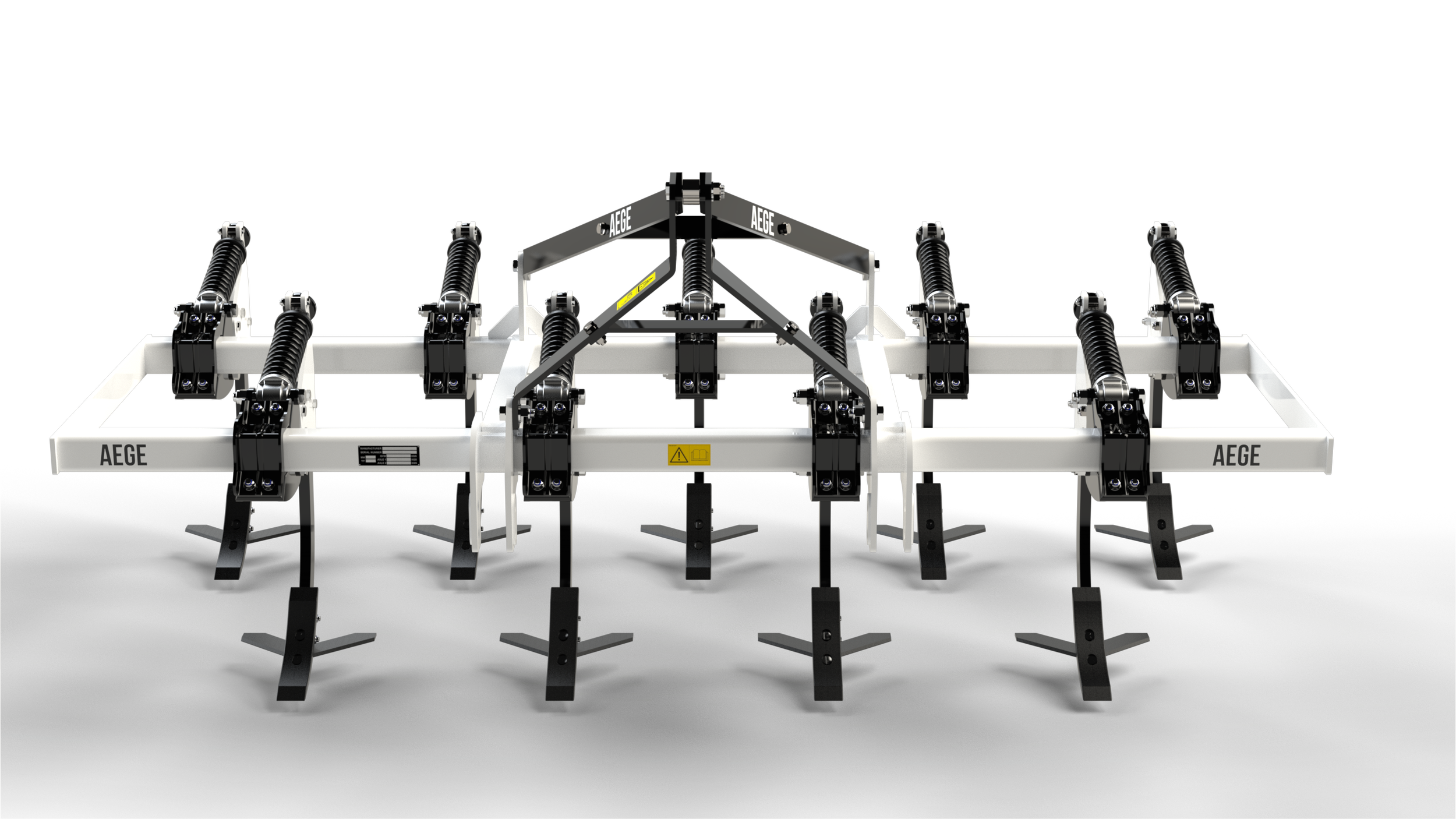

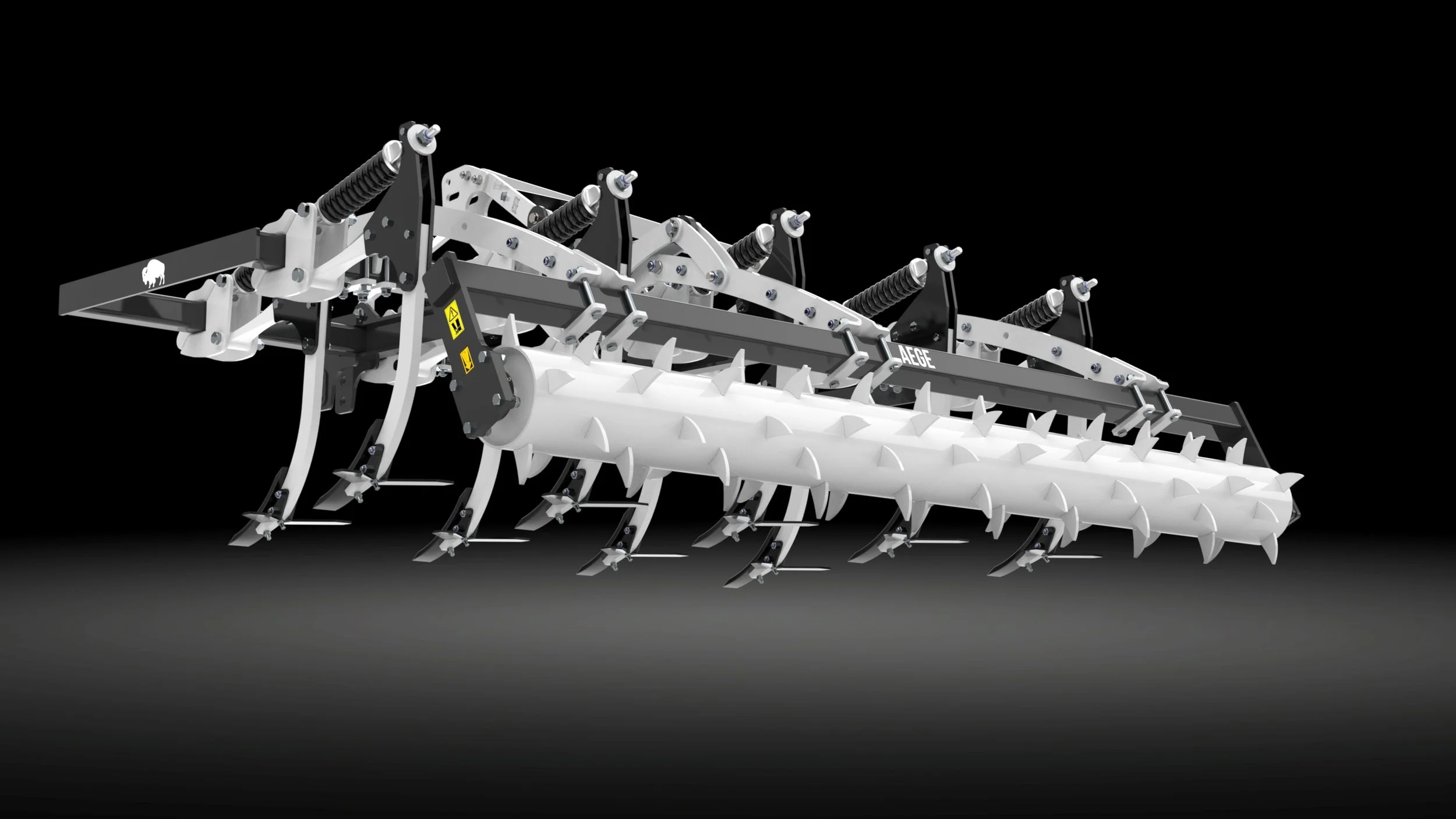

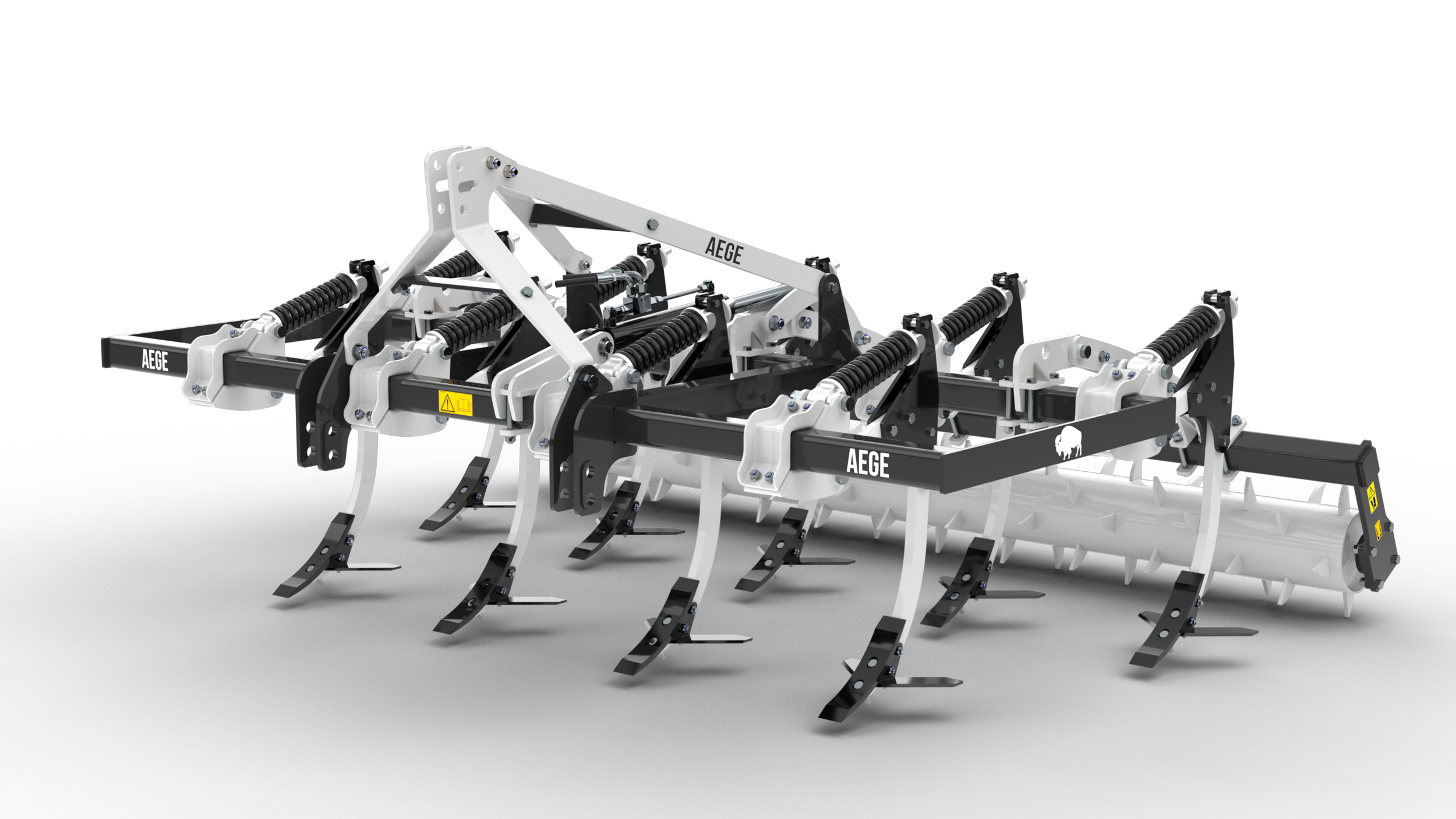

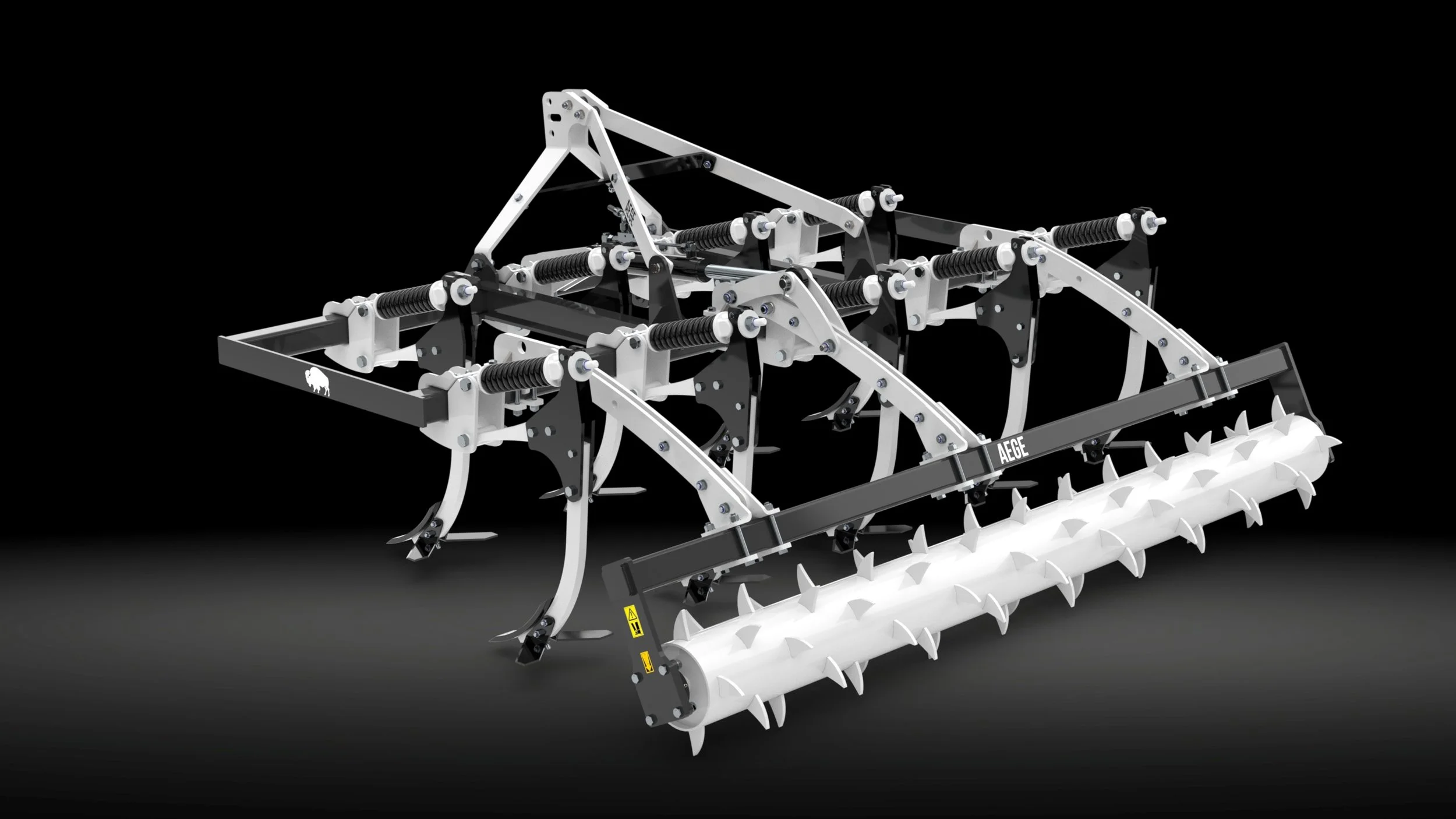

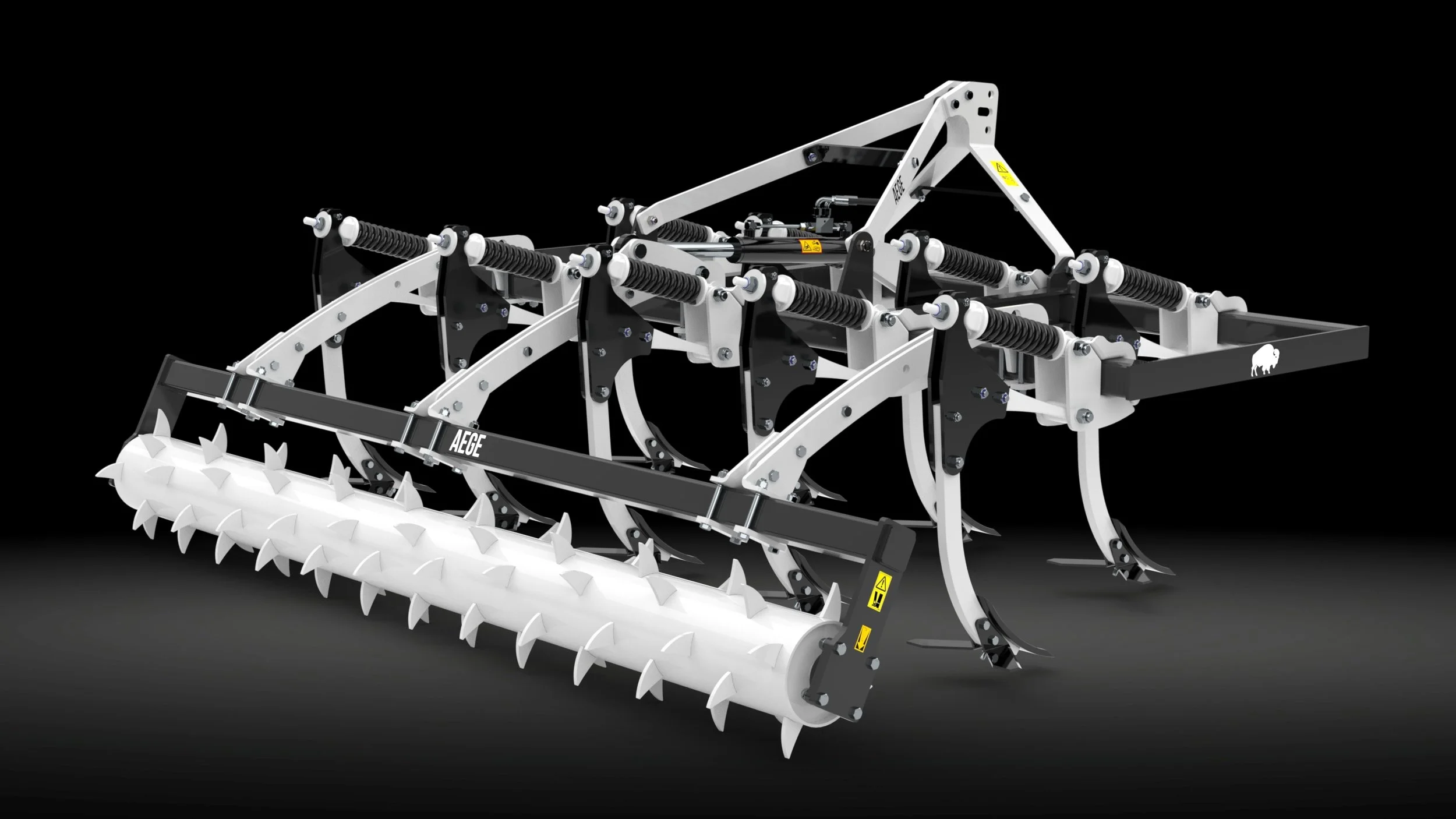

The Spring Tine Cultivator is an agricultural soil preparation machine designed for loosening, aerating, and cultivating the soil while providing effective residue management.
The machine family is available in configurations ranging from 5 to 13 tines, allowing different working widths and tractor requirements according to field conditions and application needs.
The design combines a robust welded frame with spring-loaded tines, providing effective soil penetration while allowing the working elements to respond to obstacles and changing field conditions. Particular attention was given to structural strength, manufacturability, and practical field operation.
Technical Specifications
Machine Type: Spring tine cultivator
Configuration: 5–13 tine models
Working System: Spring-loaded tines
Application: Soil loosening and cultivation
Main Structure: Heavy-duty welded steel frame
Mounting: Three-point tractor linkage
Design: Robust and adjustable structure
Scope of Work
Concept development
Mechanical design
3D modeling
Structural design
Spring tine system design
Technical drawings
Render presentation
Production-ready documentation
Applications
Soil loosening
Secondary soil cultivation
Field preparation
Residue incorporation
Seedbed preparation
General agricultural soil conditioning
