PULL-TYPE FIELD SPRAYER
Project Description

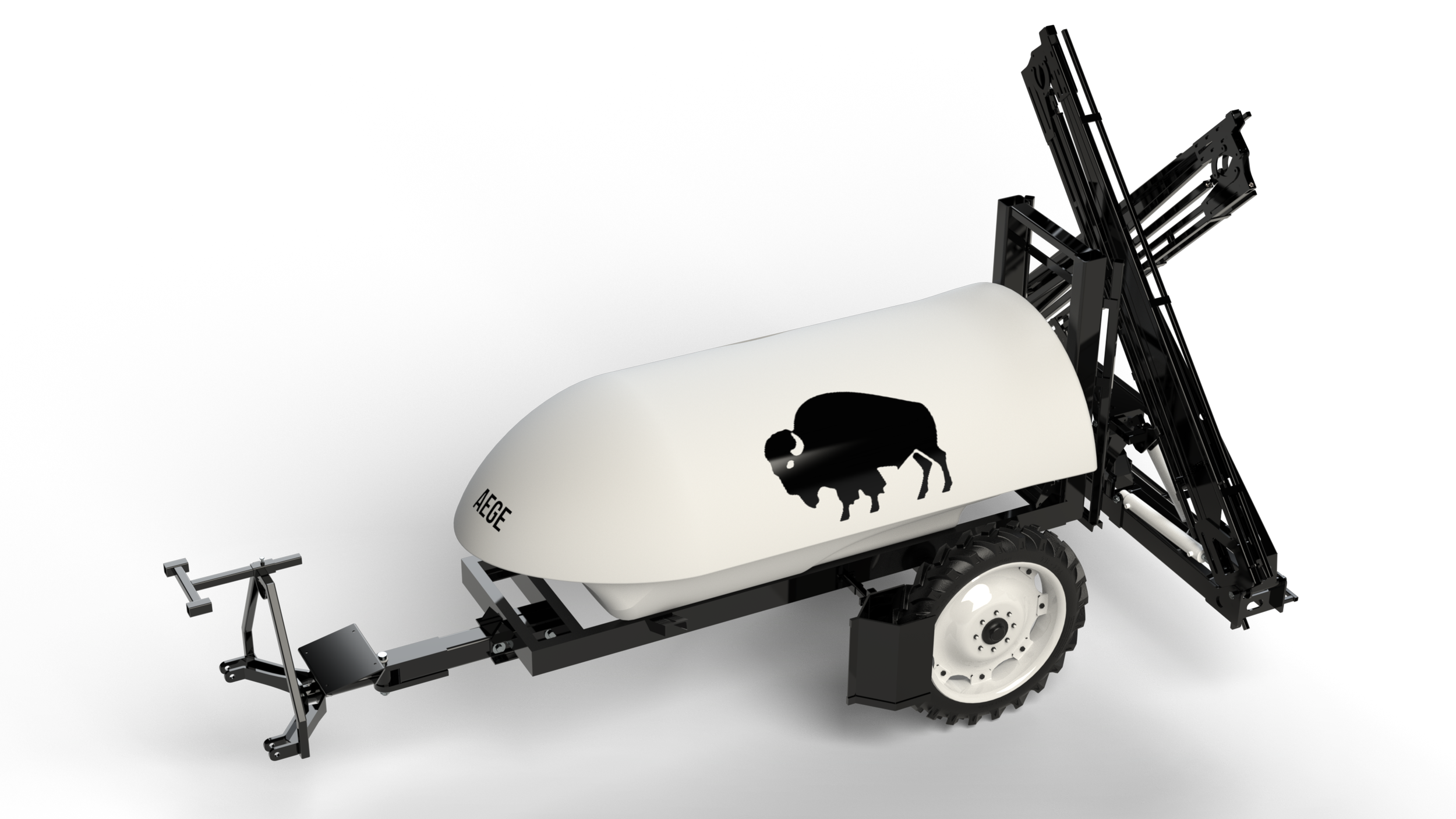

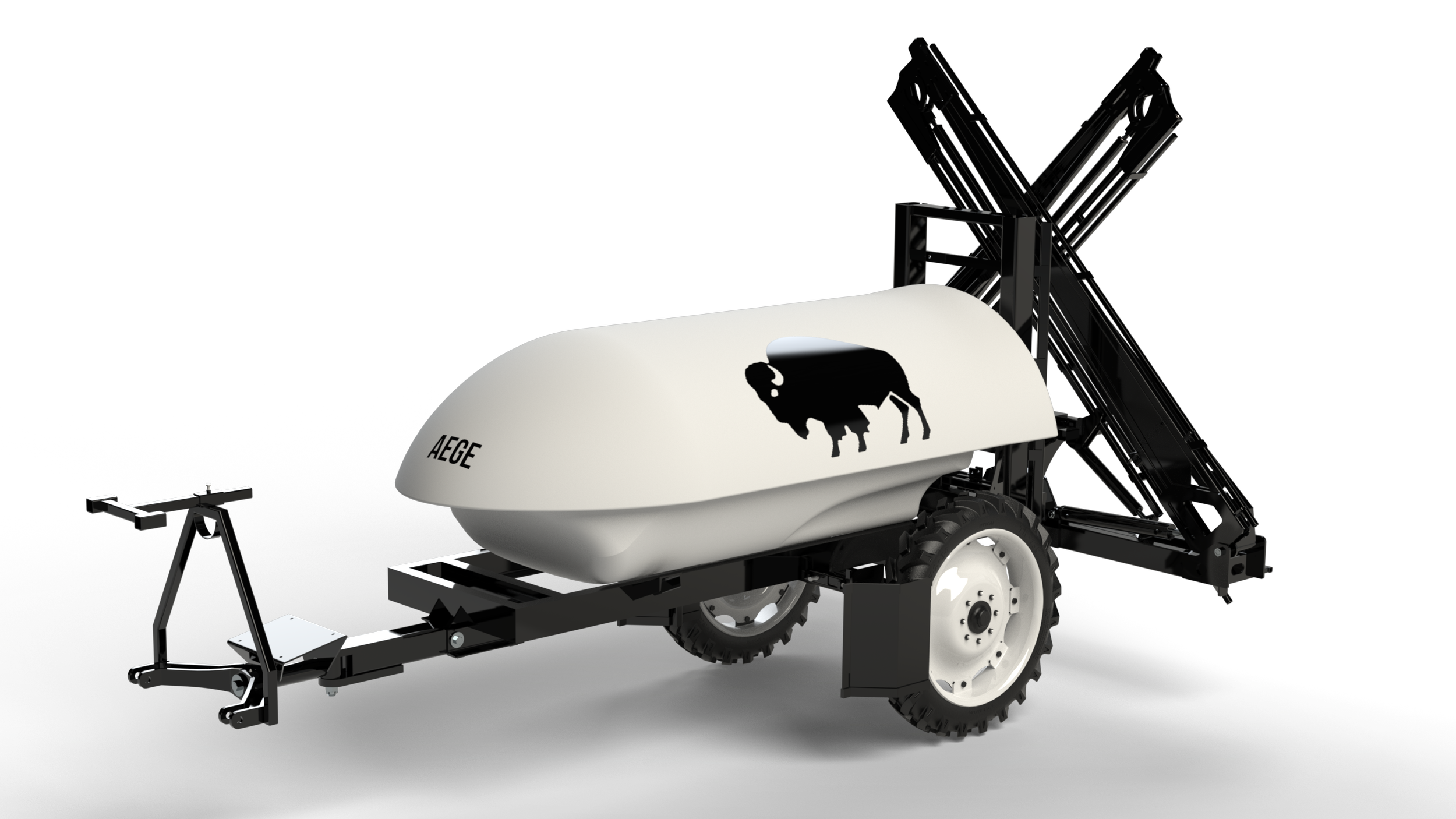

The 3 m³ Pull-Type Field Sprayer is an agricultural spraying machine designed for efficient and uniform crop protection in field applications.

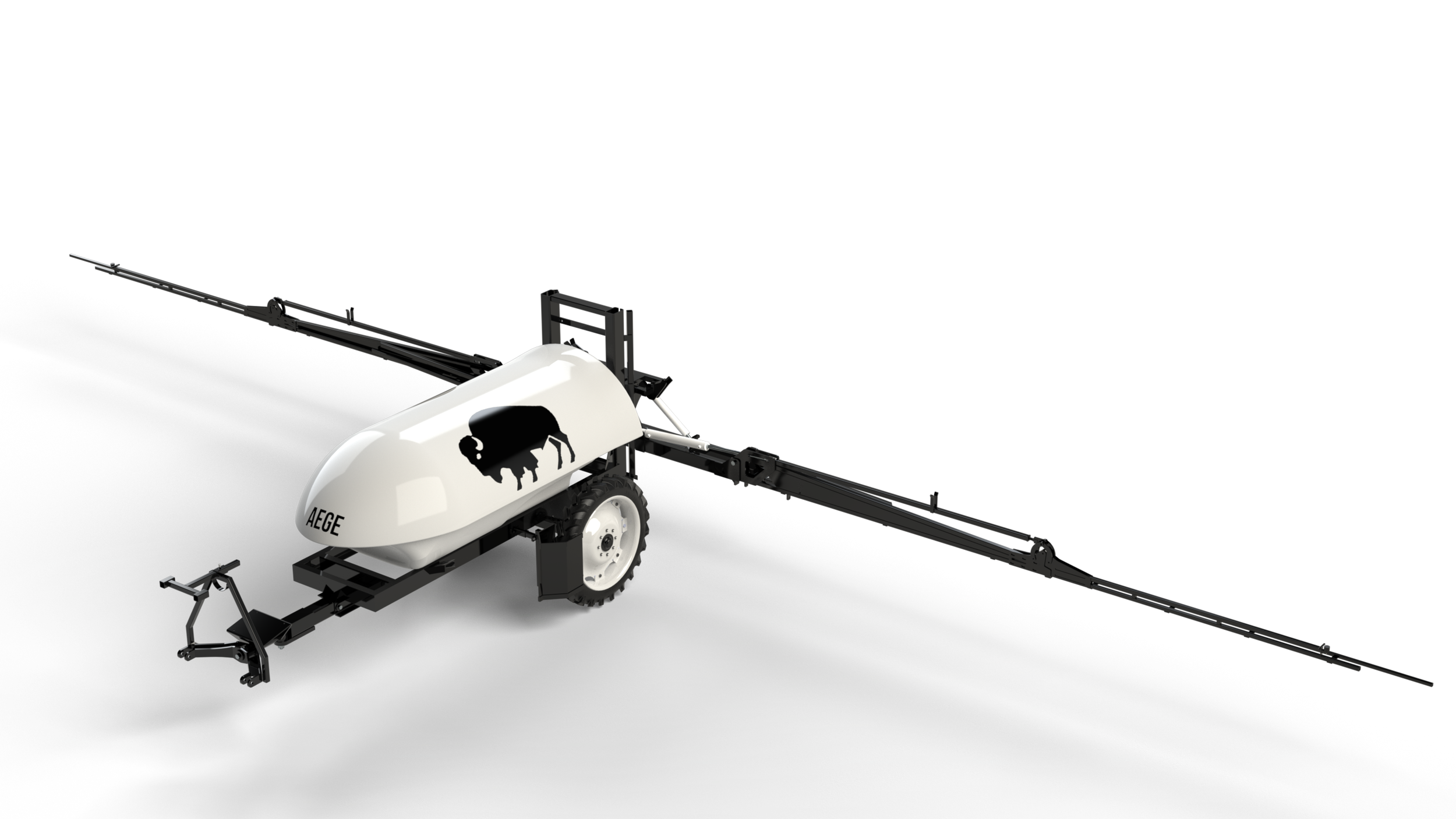

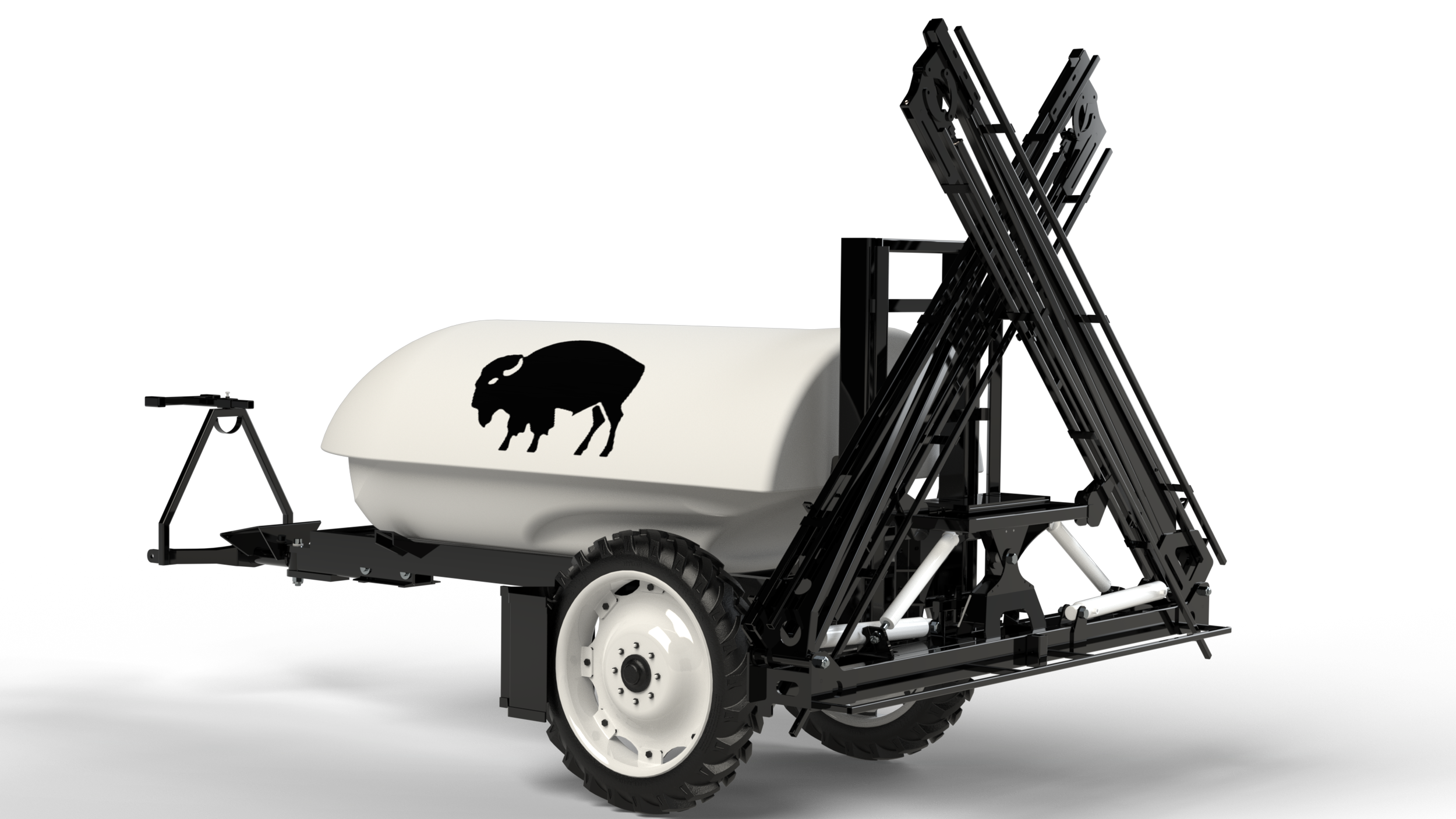

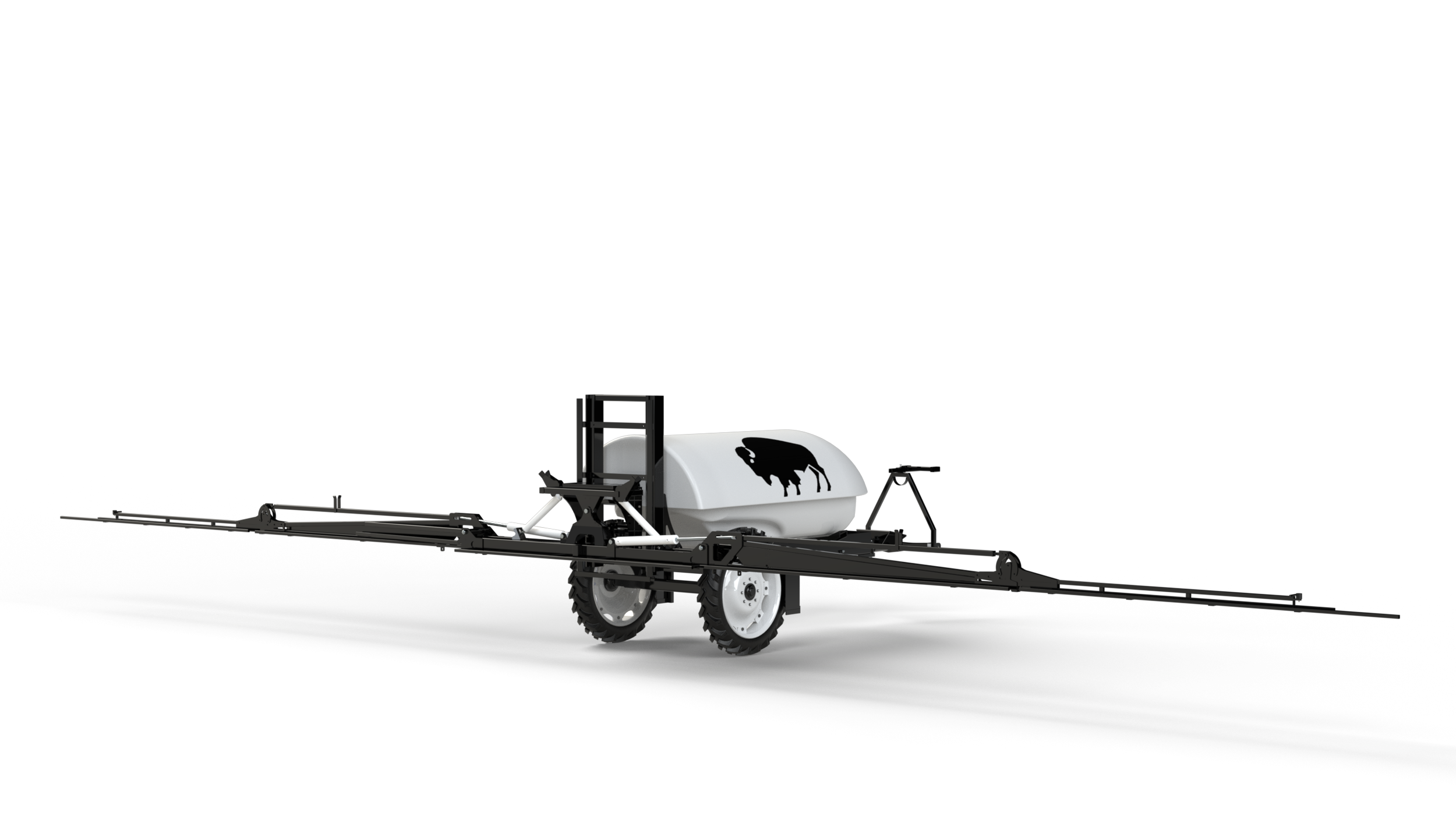

The machine features an X-type folding boom with an 18 m working width, providing wide-area coverage while maintaining a compact configuration during transport. The pull-type design allows the sprayer to be easily operated with a tractor and provides a practical solution for medium and large-scale agricultural applications.
The design focuses on structural durability, practical operation, efficient boom deployment, and reliable field performance.
Technical Specifications
Machine Type: Pull-type field sprayer
Tank Capacity: 3 m³
Boom Type: X-type folding boom
Working Width: 15 m
Mounting: Pull-type / tractor-towed
Application: Field crop spraying
Design: Robust and functional agricultural structure
Scope of Work
Concept development
Mechanical design
3D modeling
Structural design
Boom mechanism design
Folding system design
Technical drawings
Render presentation
Production-ready documentation
Applications
Field crop protection
Fertilizer and pesticide application
Large-area agricultural spraying
Uniform crop treatment
Tractor-towed spraying operations
