BIG T550 - AGRICULTURAL TRAILER
Project Description
The Big T550 is a heavy-duty monocoque agricultural trailer designed for high-volume transportation of agricultural materials such as grains, corn, barley, potatoes, and sugar beets.
The trailer features an 18 m³ standard capacity, with optional side extensions increasing the total volume up to 26 m³. Its monocoque body structure provides a strong and rigid load-carrying construction while maintaining a practical and functional design.
The tandem-axle configuration, reinforced chassis structure, and hydraulic rear tipping system are designed to provide reliable performance under demanding agricultural operating conditions.
Technical Specifications
Machine Type: Monocoque agricultural trailer
Model: Big T550
Capacity: 18 m³ standard / up to 26 m³ with extensions
Payload Capacity: 18 tons
Axle Configuration: Tandem axle
Body Structure: Monocoque welded steel body
Chassis: Reinforced structural steel frame

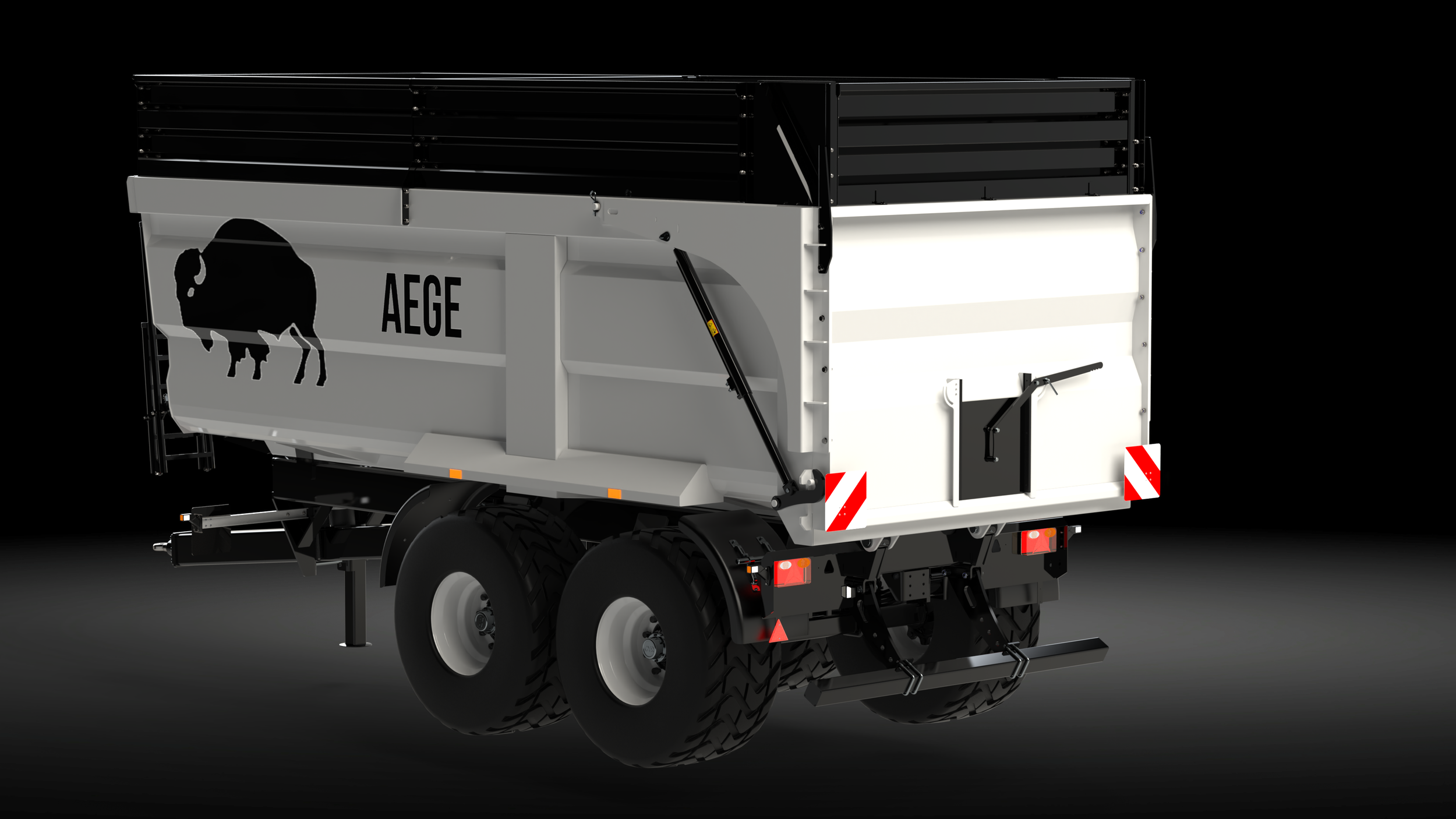

Tipping System: Hydraulic rear tipping
Braking System: Pneumatic
Application: Agricultural material transportation
Suitable Materials: Grain, corn, barley, potatoes, sugar beets, and silage
Scope of Work
Concept development
Mechanical design
3D modeling
Structural design
Chassis and body design
Hydraulic system integration
Technical drawings
Render presentation
Production-ready documentation
Applications
Grain transportation
Corn and barley transportation
Potato and sugar beet transportation
Silage transportation
High-volume agricultural material handling
General agricultural transport
