S-TINE CULTIVATOR
Project Description

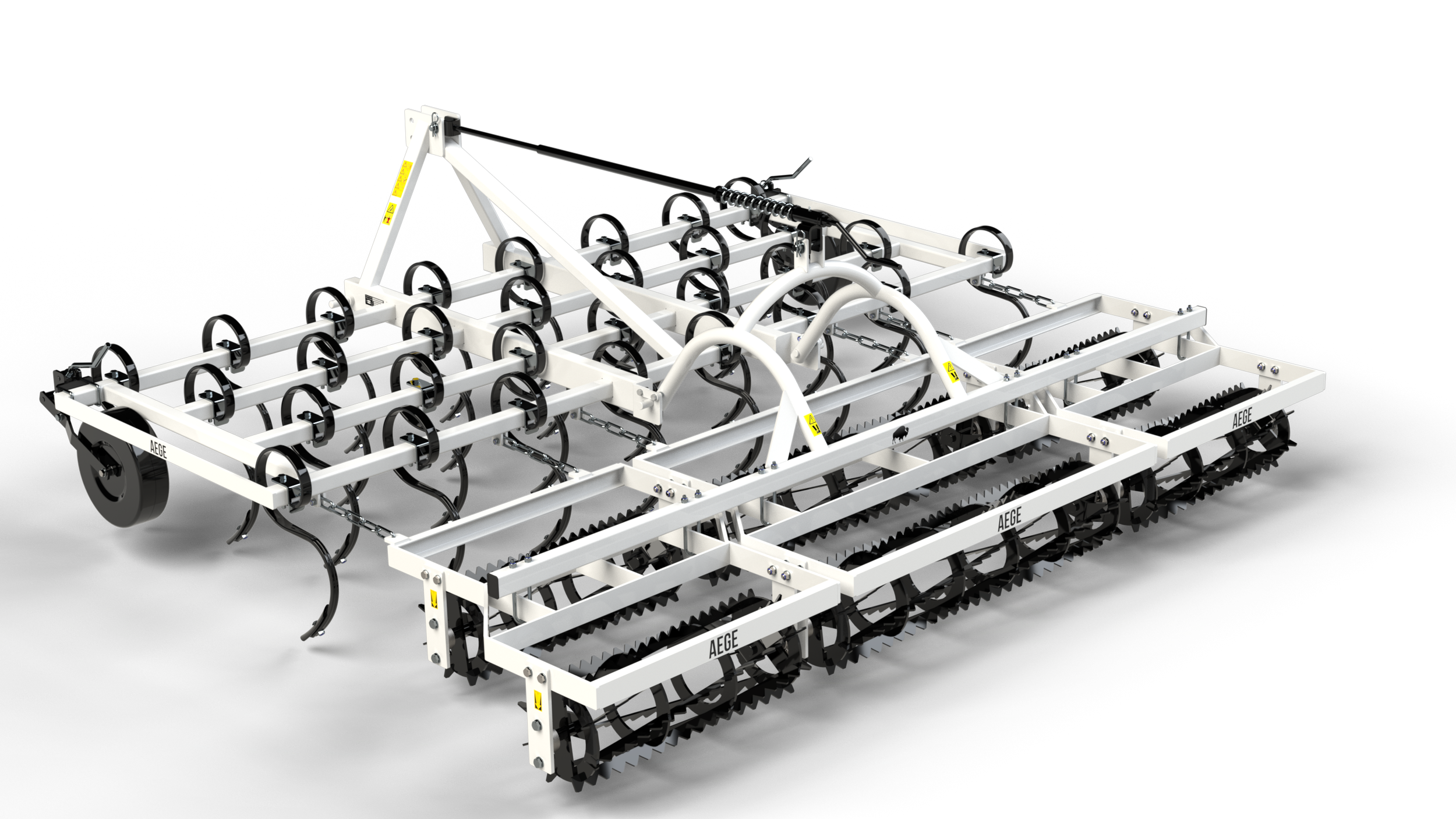

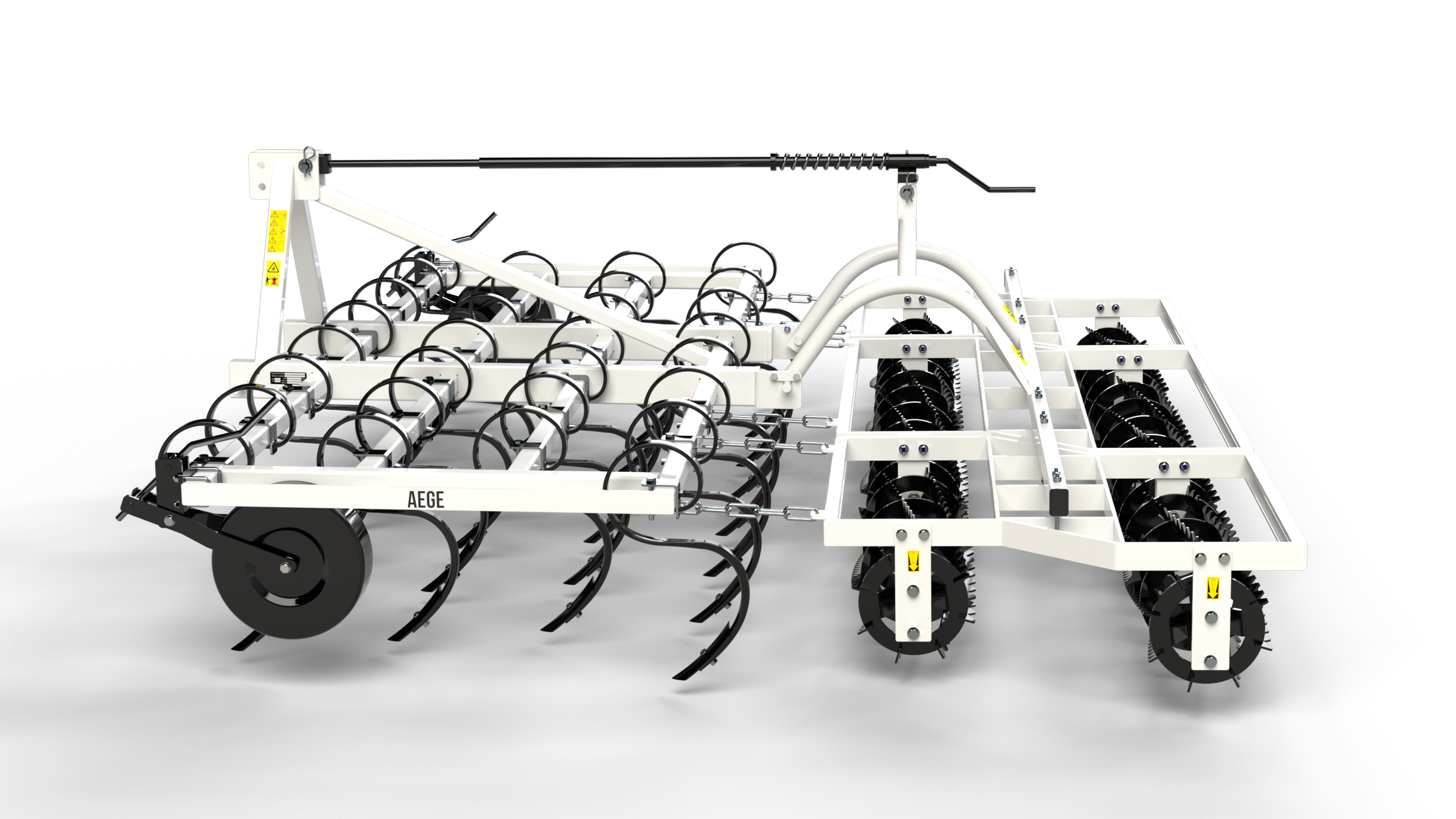

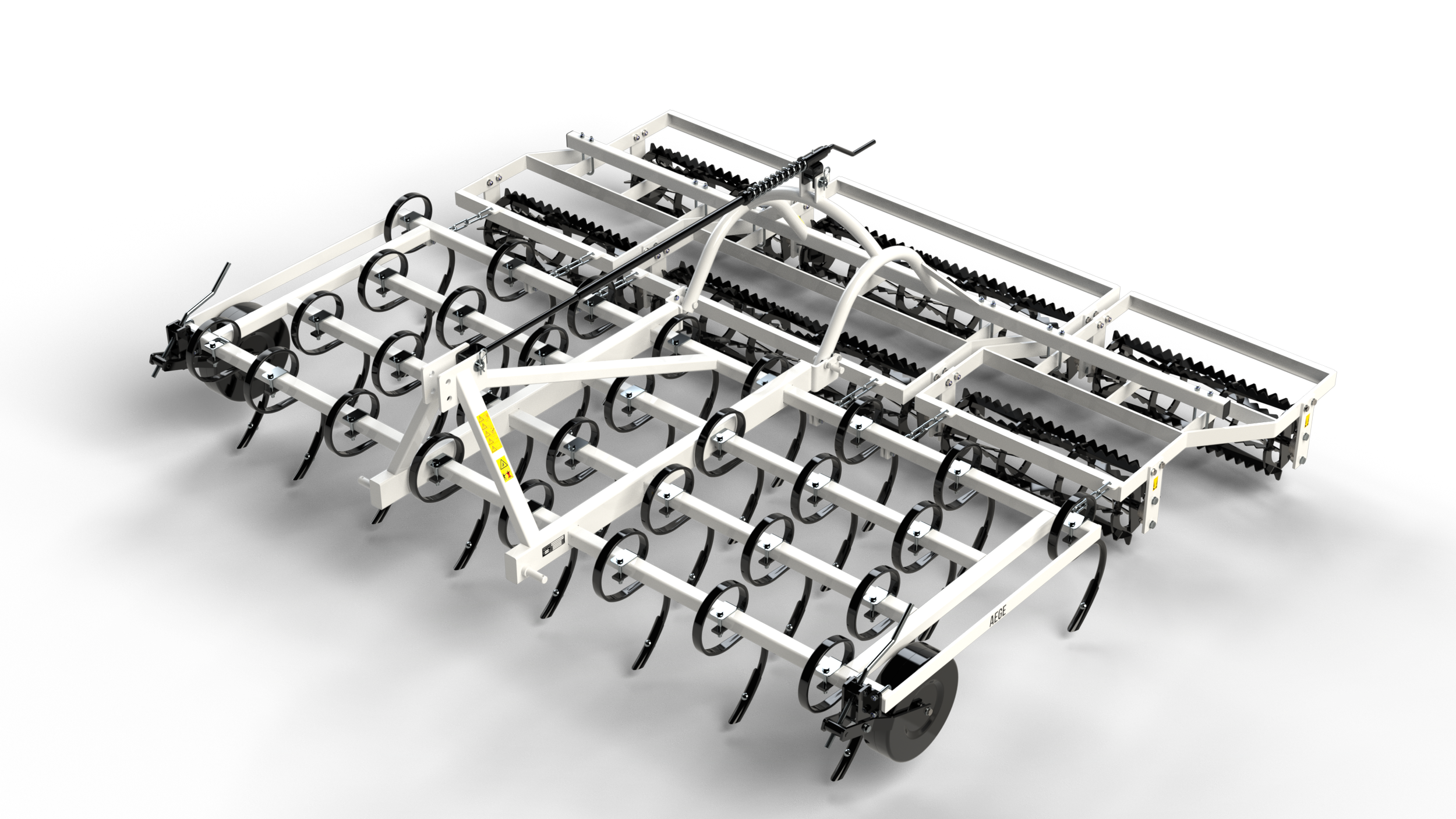

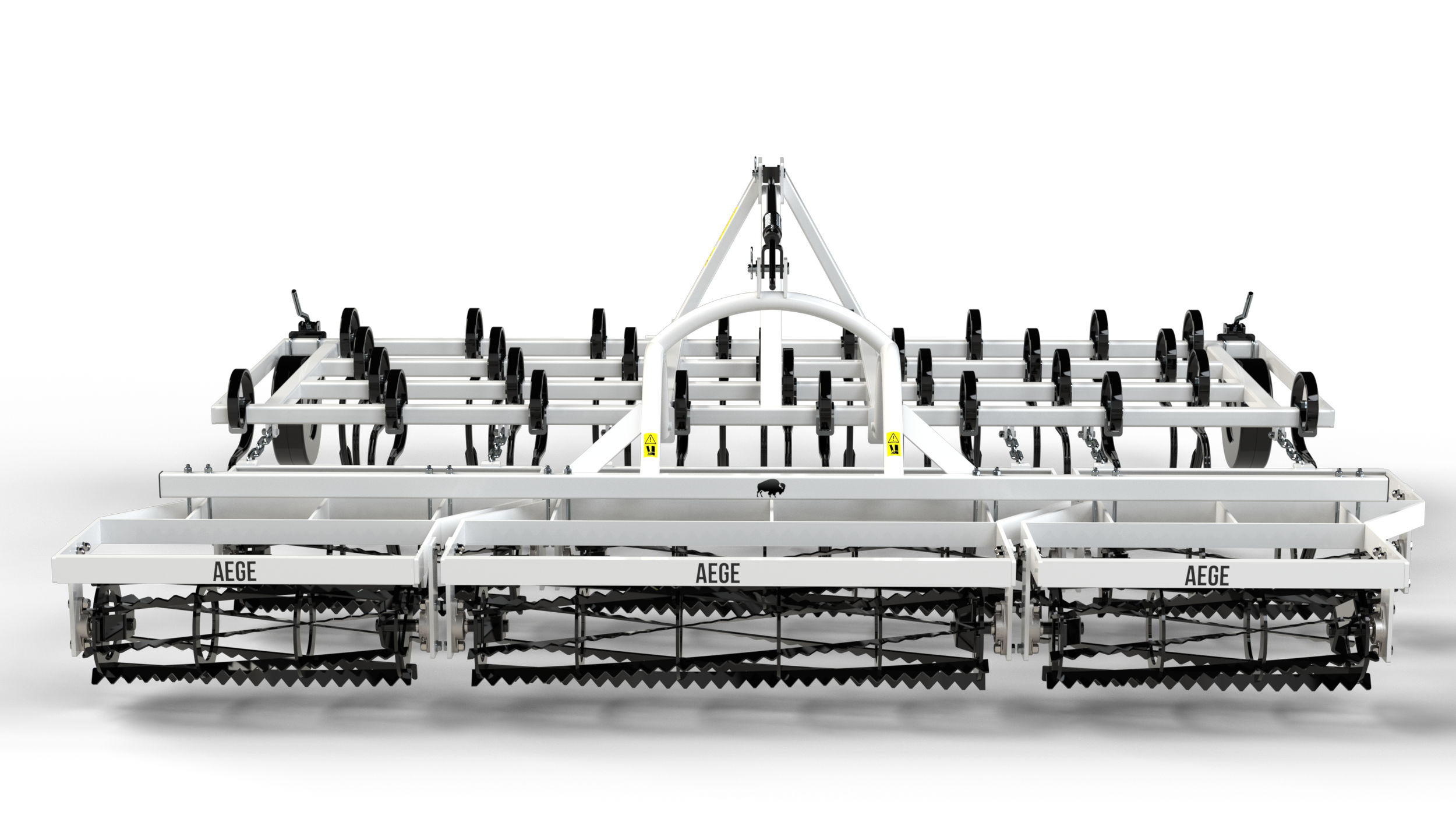

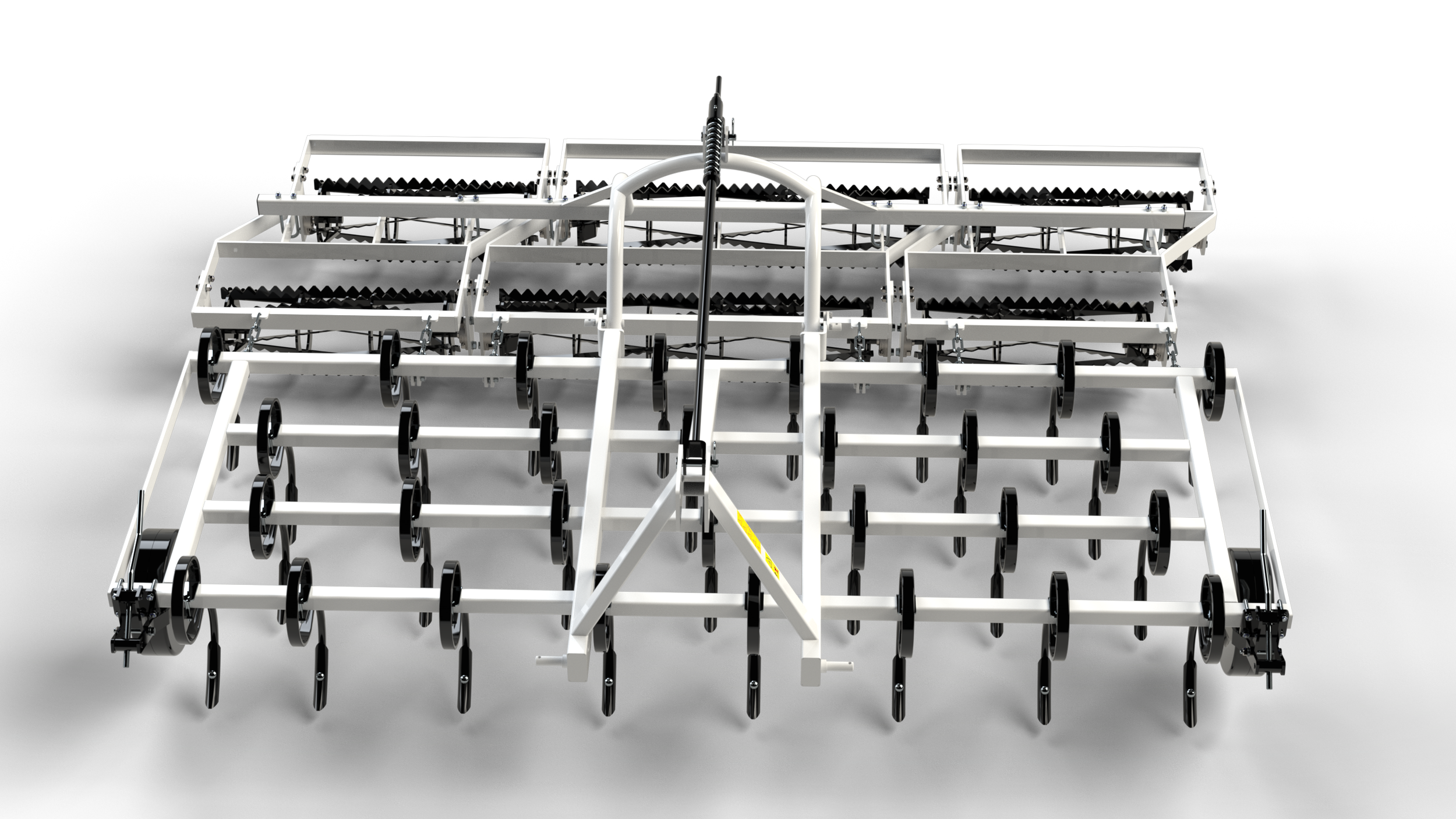

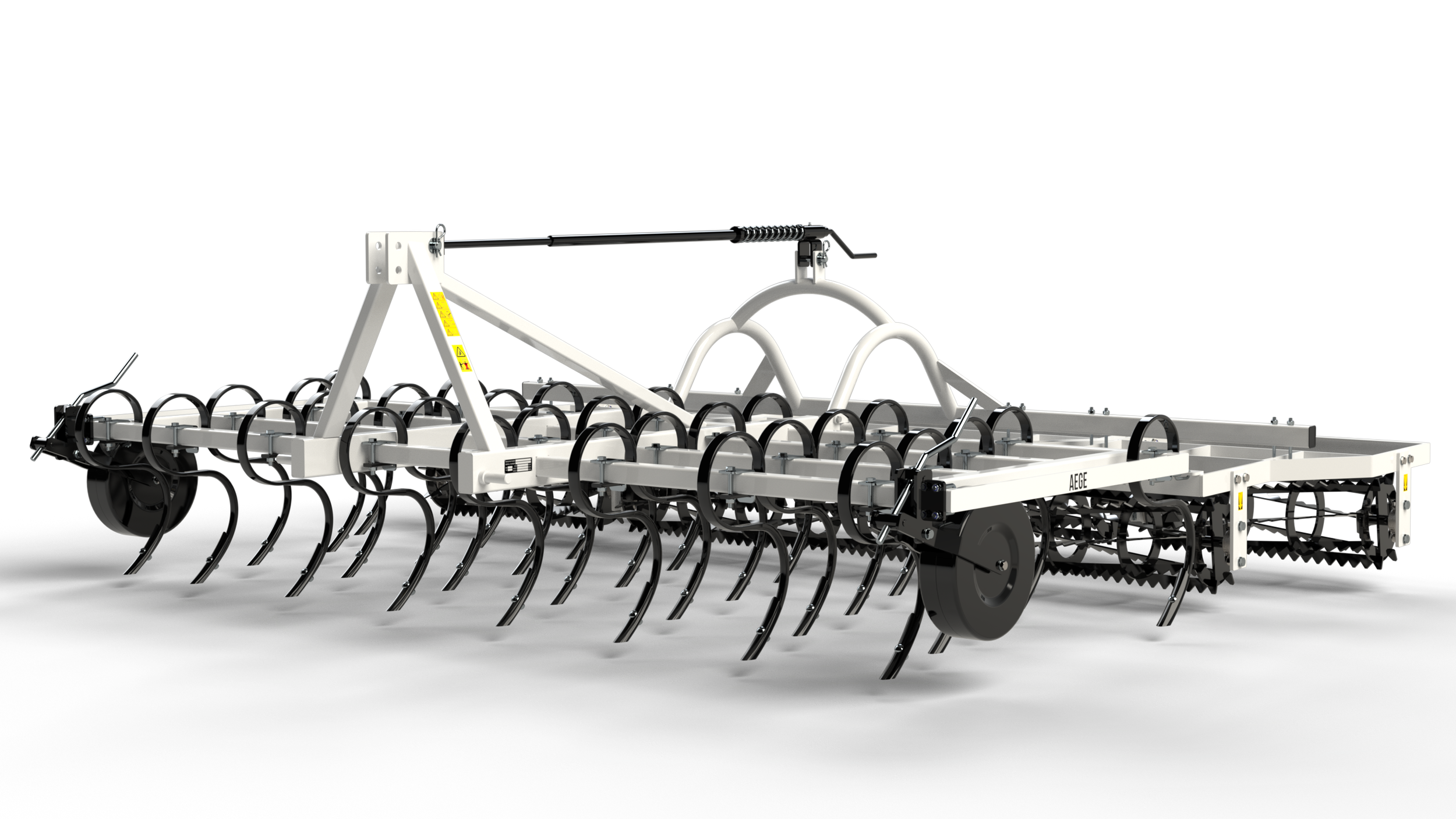

The S-Tine Cultivator is a tractor-mounted soil cultivation machine designed for efficient secondary tillage, soil loosening, and seedbed preparation.
The machine family is available in working widths ranging from 1.8 m to 3.2 m, providing different configurations according to field size, tractor power, and operating requirements.
The S-shaped spring tines provide effective soil penetration and cultivation while allowing the working elements to flex when encountering obstacles. The robust welded frame and practical tine arrangement are designed for reliable field performance, durability, and ease of operation.
Technical Specifications
Machine Type: S-Tine cultivator
Working Width: 1.8–3.2 m
Working System: S-shaped spring tines
Application: Secondary soil cultivation
Main Structure: Heavy-duty welded steel frame
Mounting: Three-point tractor linkage
Design: Robust and flexible tine configuration
Scope of Work
Concept development
Mechanical design
3D modeling
Tine arrangement design
Structural design
Technical drawings
Render presentation
Production-ready documentation
Applications
Secondary soil cultivation
Soil loosening
Seedbed preparation
Weed control
Residue incorporation
General field conditioning
