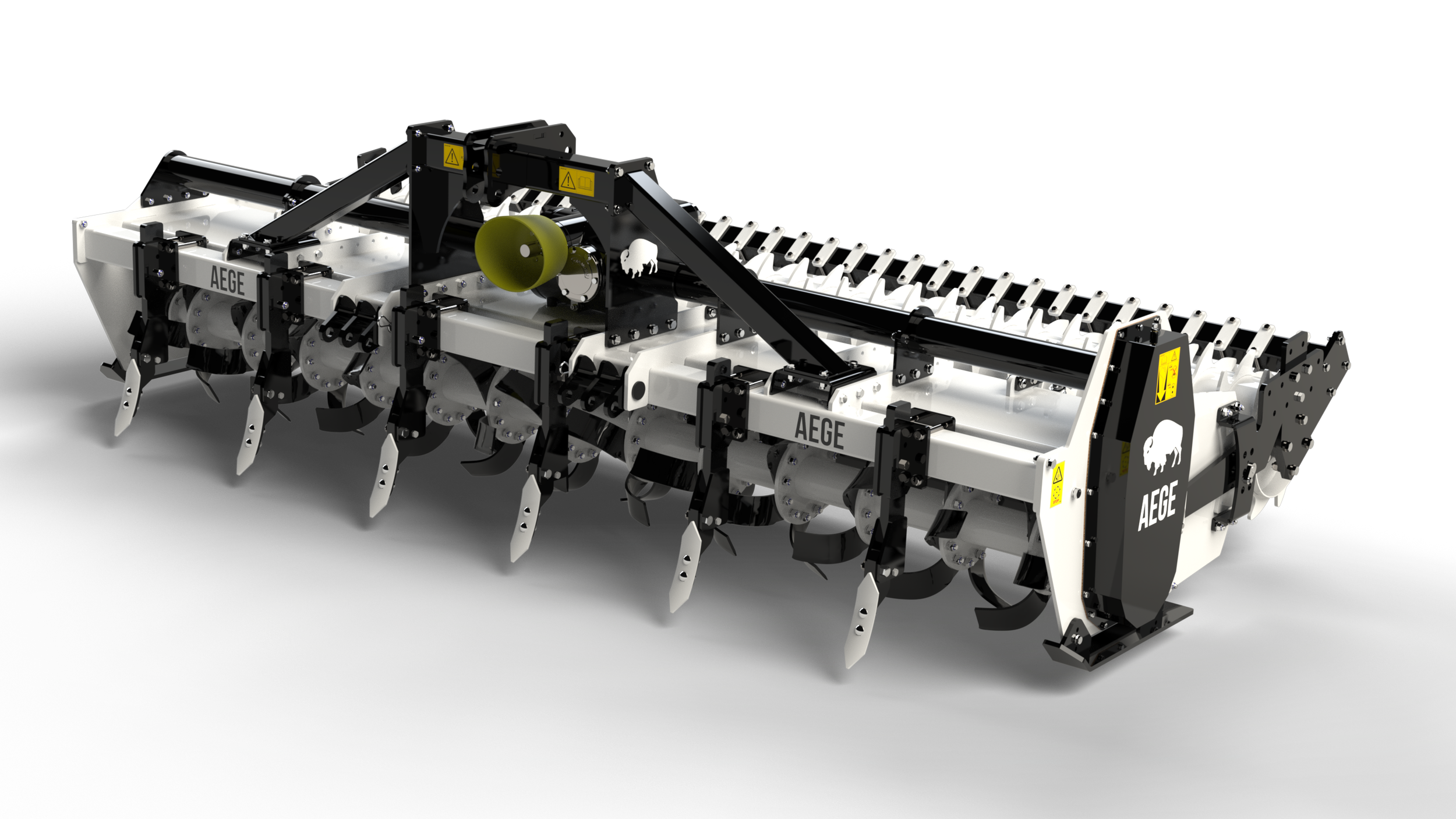

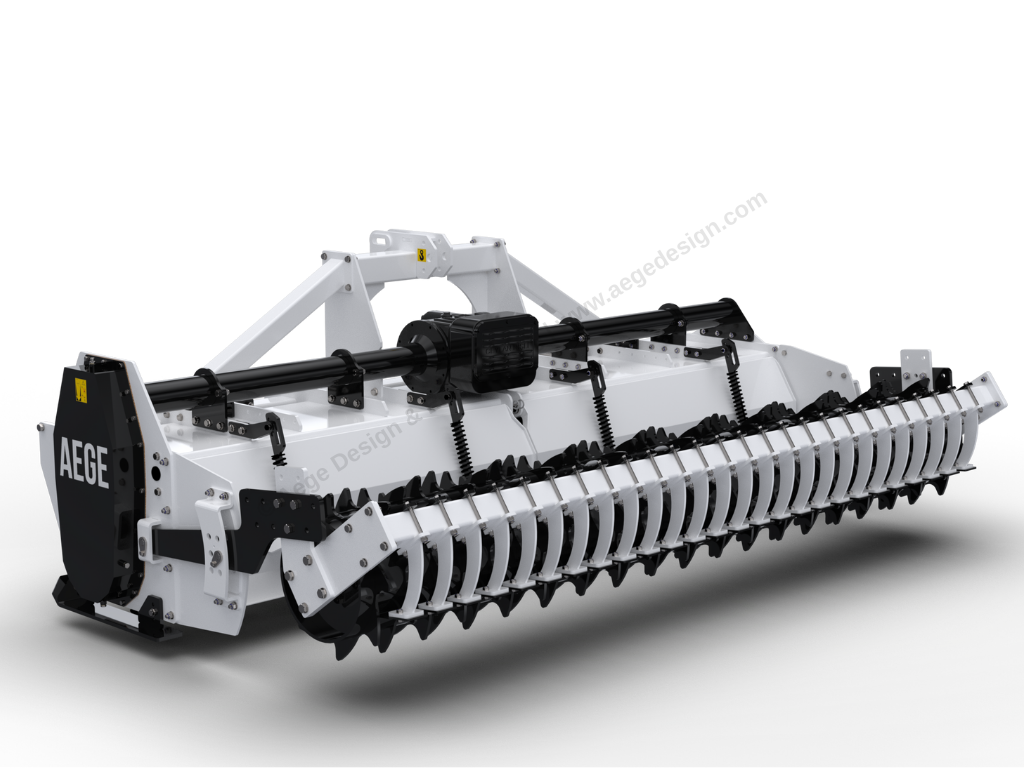

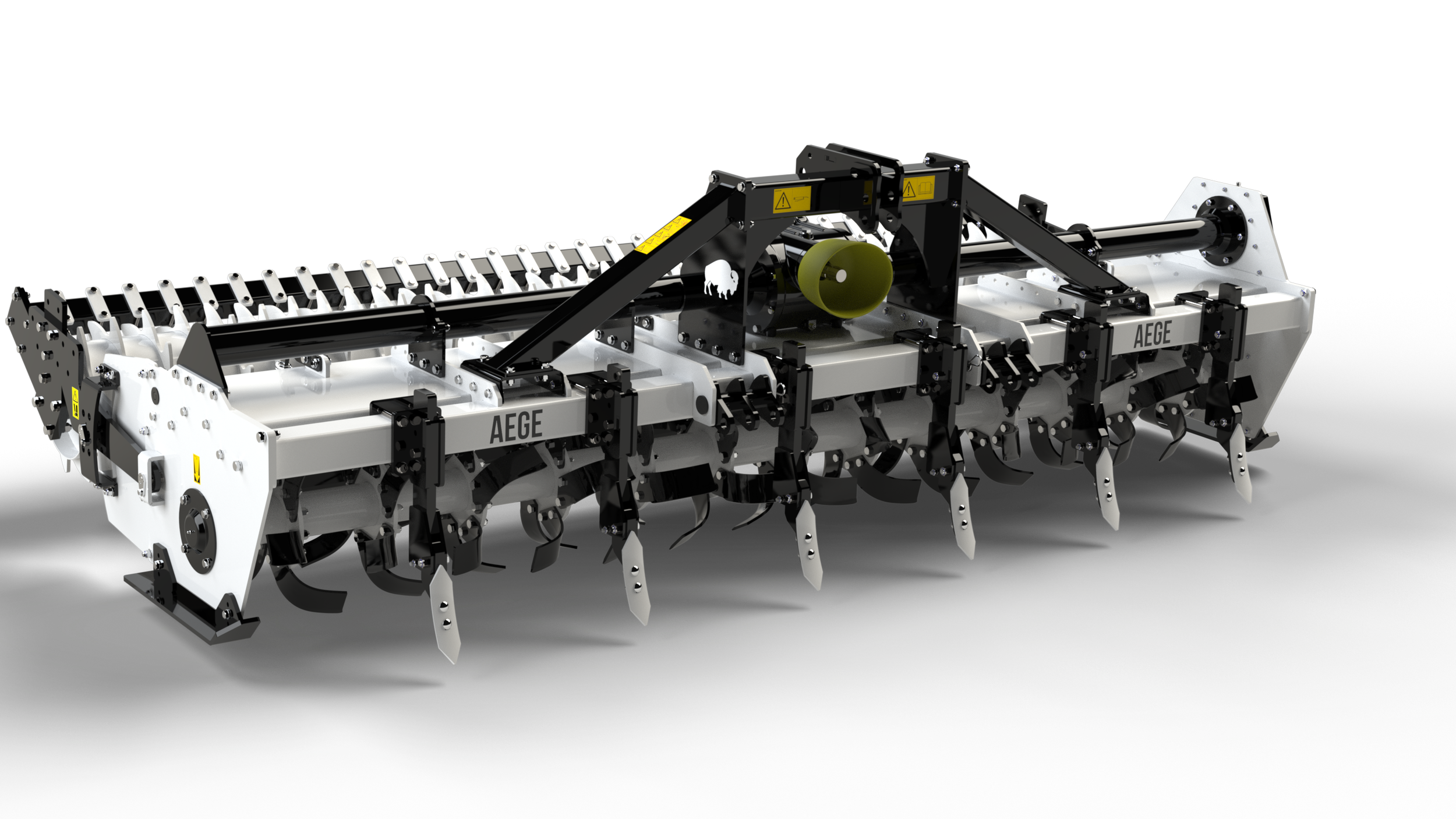

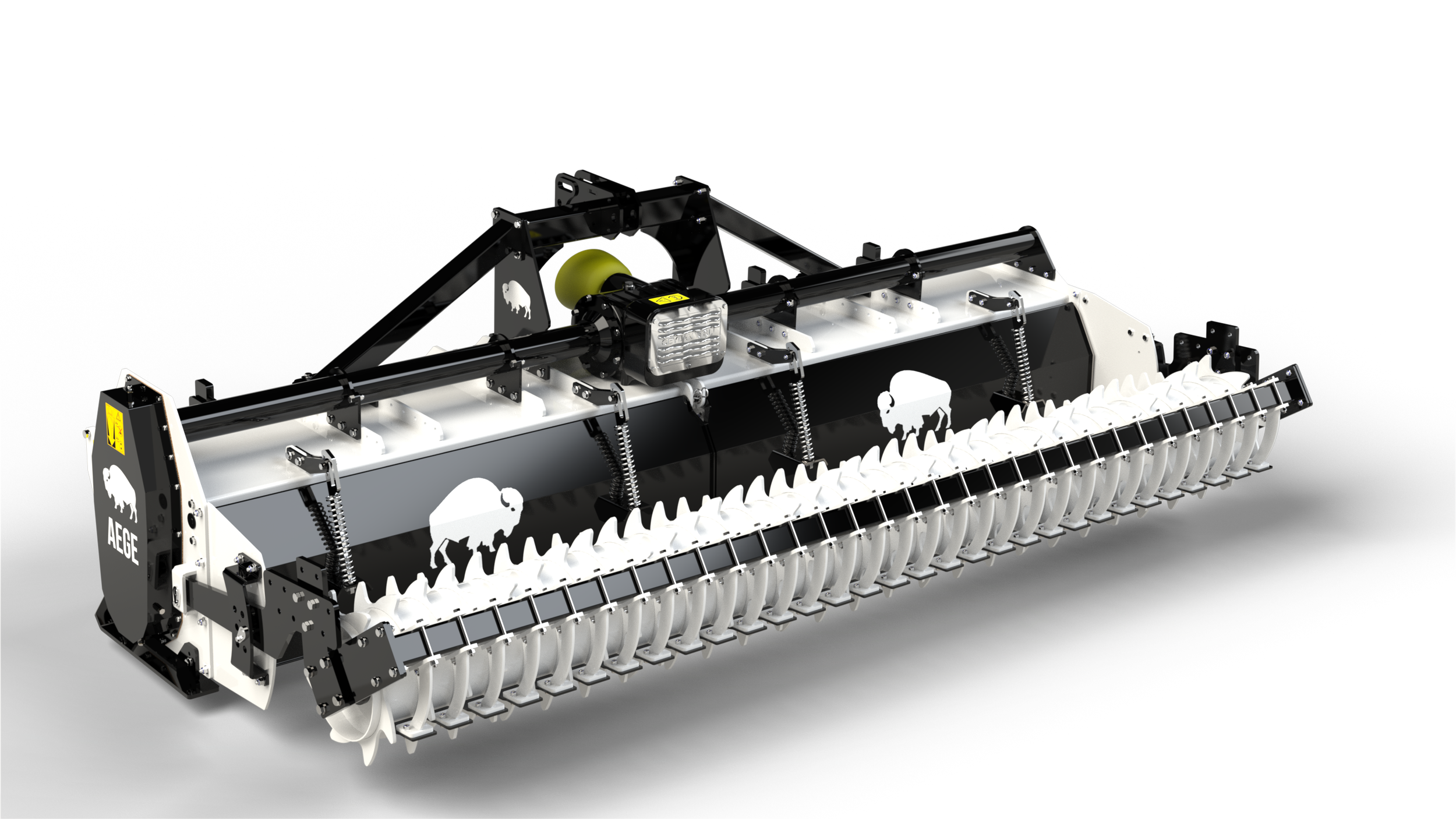

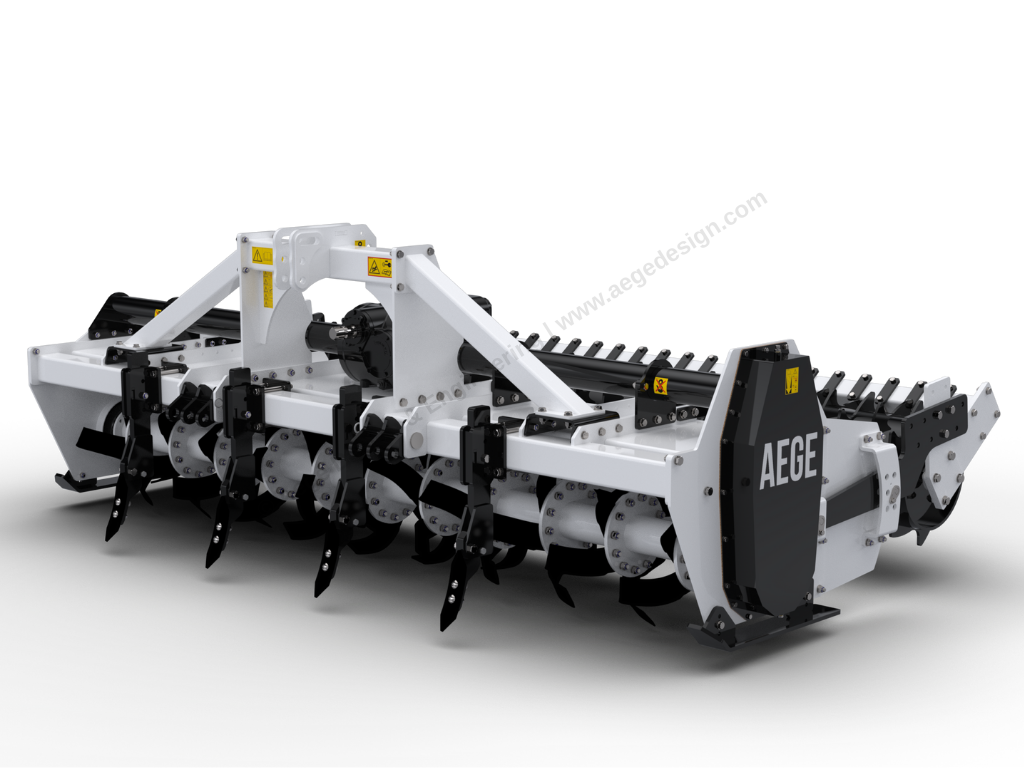

FIELD TYPE ROTARY TILLER
Project Description
The Field Type Rotary Tiller is a tractor-mounted soil preparation machine developed for effective primary and secondary soil cultivation in open-field applications.
The machine family is available in four working widths: 2.65 m, 2.90 m, 3.15 m, and 3.40 m, providing different configurations according to tractor power and field requirements.
The design features a robust welded main frame, a reliable gearbox-driven rotary system, and durable L-type rotary blades. The overall design focuses on structural strength, efficient power transmission, manufacturability, and reliable field performance.
Technical Specifications
Machine Type: Tractor-mounted rotary tiller
Working Widths: 2.65 m / 2.90 m / 3.15 m / 3.40 m
Required Power: 70–120 HP
Drive System: Gearbox-driven
Blade Type: L-type rotary blades
Main Structure: Heavy-duty welded steel frame
Mounting: Three-point tractor linkage
Scope of Work
Concept development
Mechanical design
3D modeling
Gearbox and drive system design
Structural design
Technical drawings
Render presentation
Production-ready documentation
Applications
Open-field soil cultivation
Seedbed preparation
Primary and secondary tillage
Soil loosening and conditioning
Pre-planting field preparation
